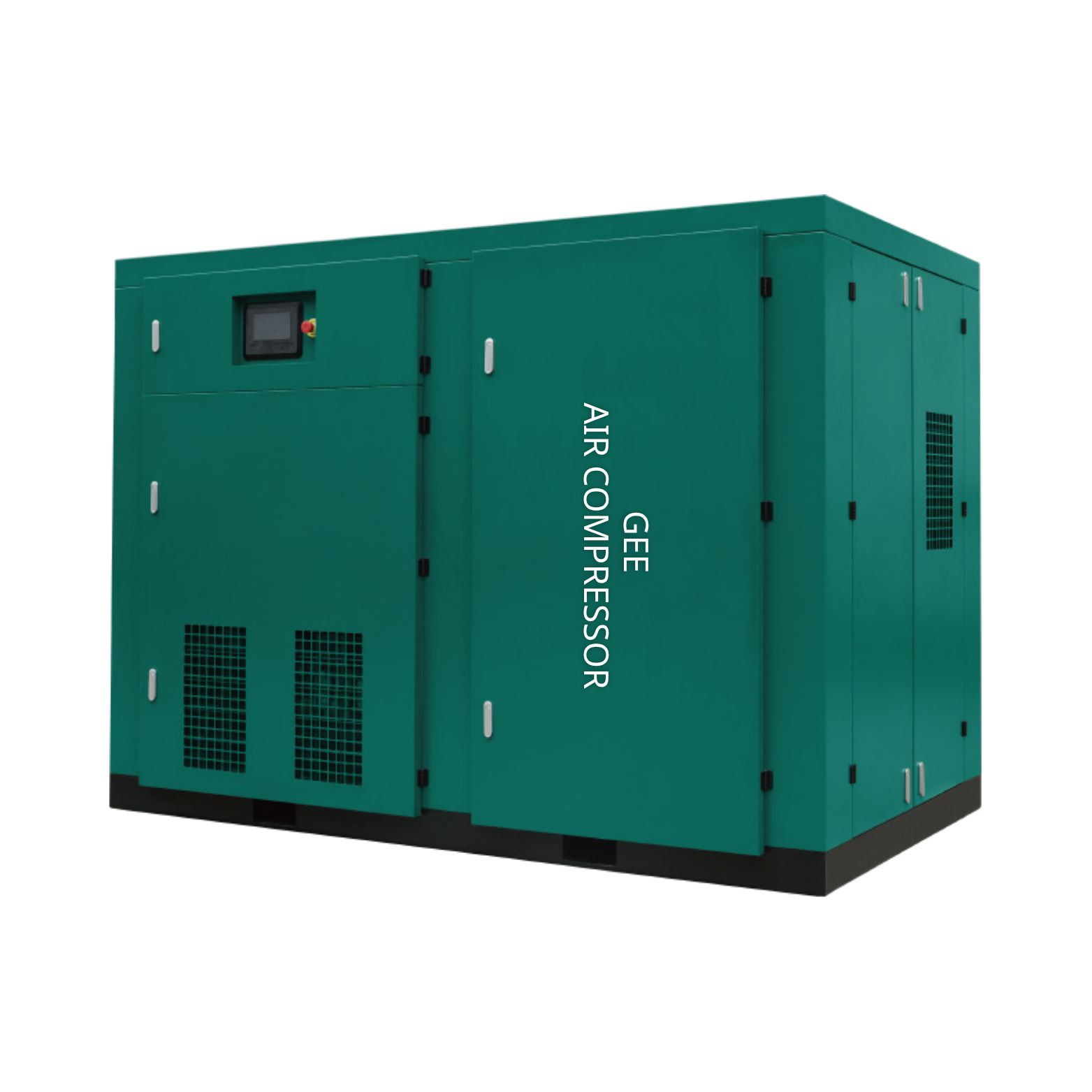

GE-G series Power frequency single stage compression screw air compressor

GE-G Series – GEE Air Compressors

High-Efficiency PM Motor Screw Air Compressors
Designed for performance, durability, and energy savings across industrial applications.

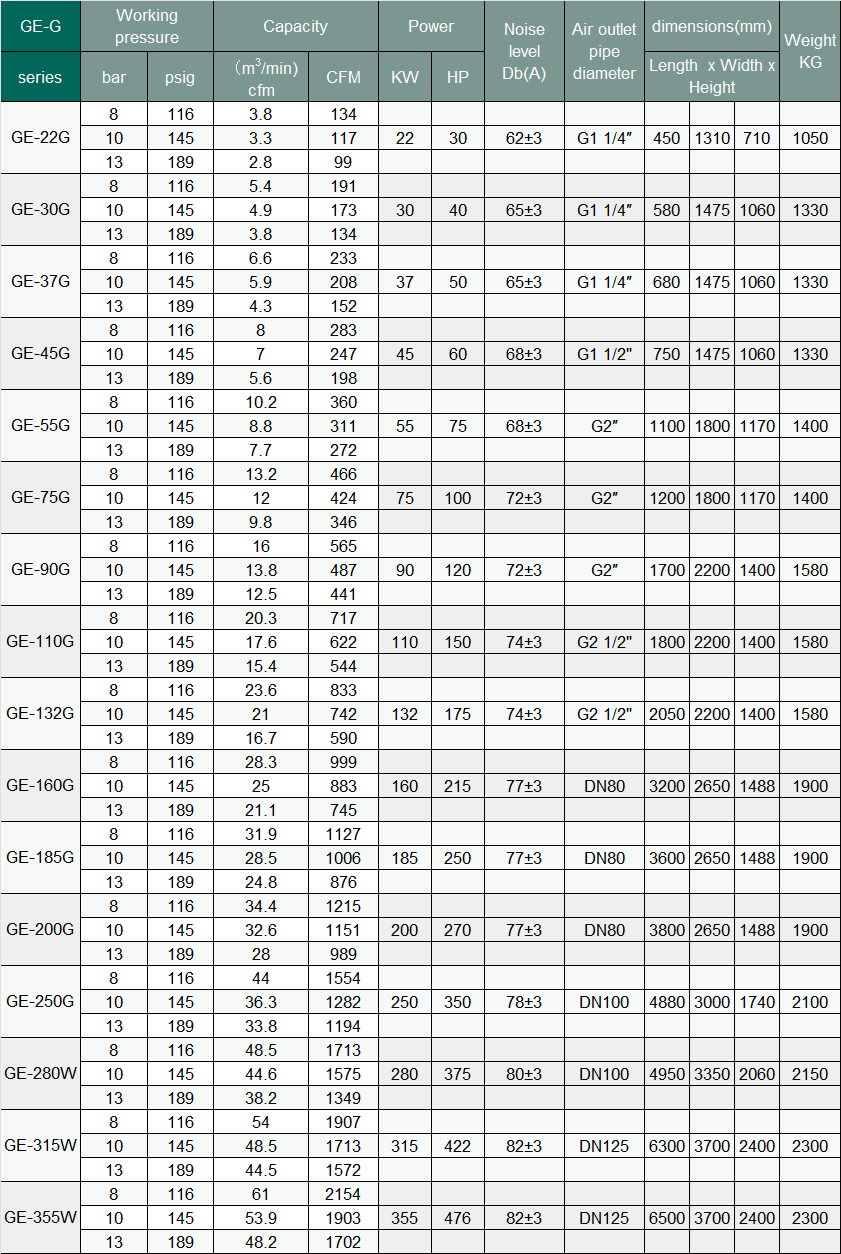

Technical Specifications:

  • Model: GE-G Series (Single Stage Compressors)
  • Brand: GEE – Air Compressor
  • Working Pressure: 8 ~ 13 bar
  • Free Air Delivery (FAD): 3.8 ~ 61.0 m³/min
  • Power Range: 22 ~ 355 kW
  • Motor Type: Permanent Magnet (PM) Motor / Induction Motor
  • Drive Type: Fix Speed / Variable Frequency drive (VFD)
  • Protection Class Options: IP23, IP54, IP55, IP65

Origin & Assembly:

We offer regional flexibility with assembly facilities in China, Europe, and Turkey, ensuring fast delivery and localized technical support.

Customization & Inquiries:

For special configurations, energy audits, or technical support, please contact us directly. Our team will provide a tailored solution for your plant’s needs.

Description

The design idea of “big rotor, big bearing, low speed” is adopted to reduce noise and vibration and increase the life and stability of the main engine. The tooth surface is ma- chined by rotor grinder to create a high-precision rotor. The new 5:6 asymmetric rotor tooth type is adopted to increase the exhaust volume by 5%-10%. YE3 High efficiency motor, man-machine AC interface touch screen microcomputer controller.
