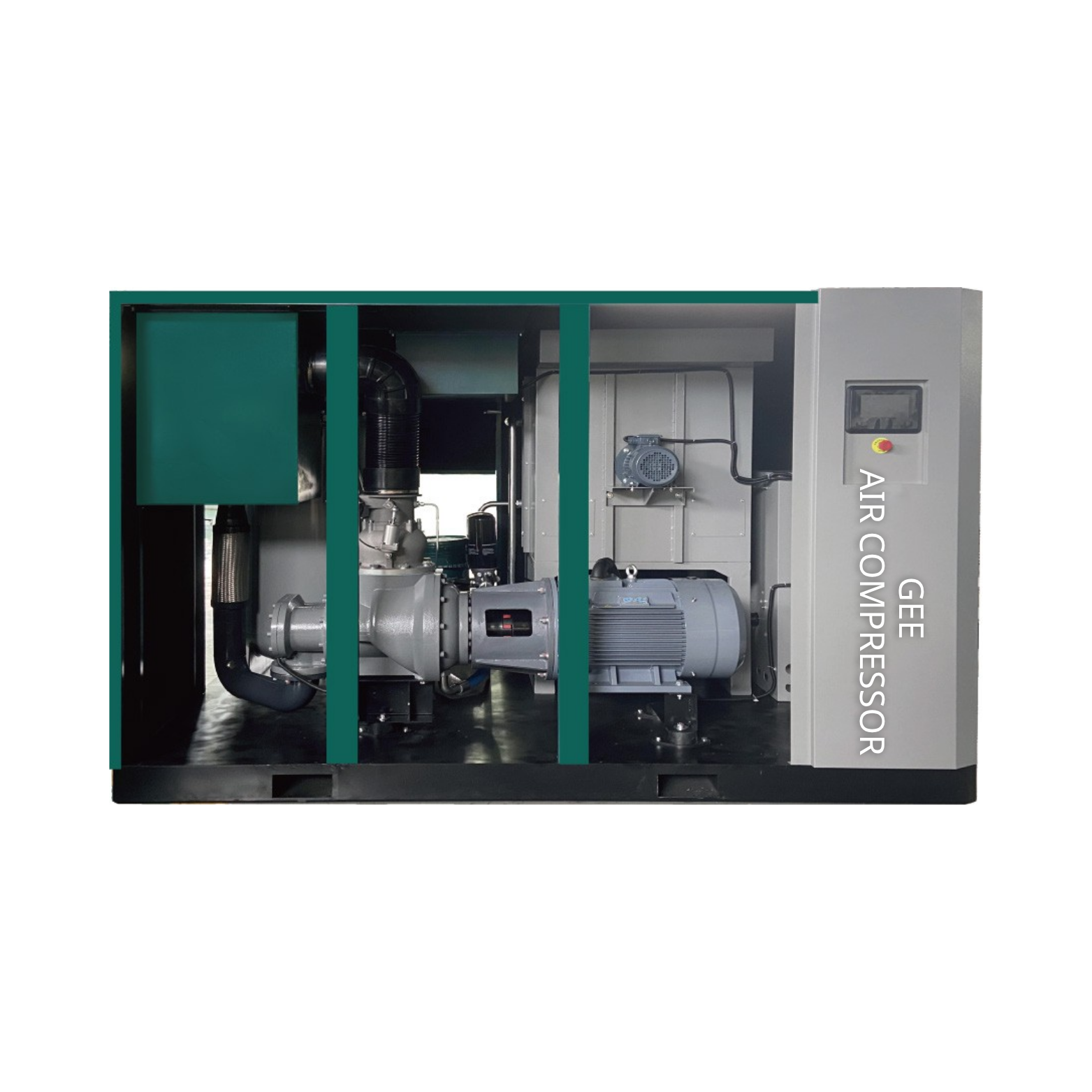

GHLV-G series Low pressure permanent magnet double frequency single stage compression screw air compressor

GHLV-G Series – GEE Air Compressors

High-Efficiency PM Motor Screw Air Compressors
Designed for performance, durability, and energy savings across industrial applications.

Technical Specifications:

  • Model: GHLV-G Series (Low pressure Single Stage Compressors For Weaving shed / Air jet Looms)
  • Brand: GEE – Air Compressor
  • Working Pressure: 2.1 ~ 3 bar
  • Free Air Delivery (FAD): 1.8 ~ 80 m³/min
  • Power Range: 22 ~ 250 kW
  • Motor Type: Permanent Magnet (PM) Motor / Induction Motor
  • Drive Type: Fix Speed / Variable Frequency drive (VFD)
  • Protection Class Options: IP23, IP54, IP55, IP65

Origin & Assembly:

We offer regional flexibility with assembly facilities in China, Europe, and Turkey, ensuring fast delivery and localized technical support.

Customization & Inquiries:

For special configurations, energy audits, or technical support, please contact us directly. Our team will provide a tailored solution for your plant’s needs.

Description

Large rotor low speed and low voltage special host, permanent magnet synchronous motor efficiency reaches IE5 level, low pressure special oil and gas separation system design, lower oil content, silent centrifugal fan configuration, host fan double frequency conversion design, increase the cooler side suction top row design, hot and cold partition design, man-machine AC interface touch screen microcomputer con- troller real-time monitoring operation status.
