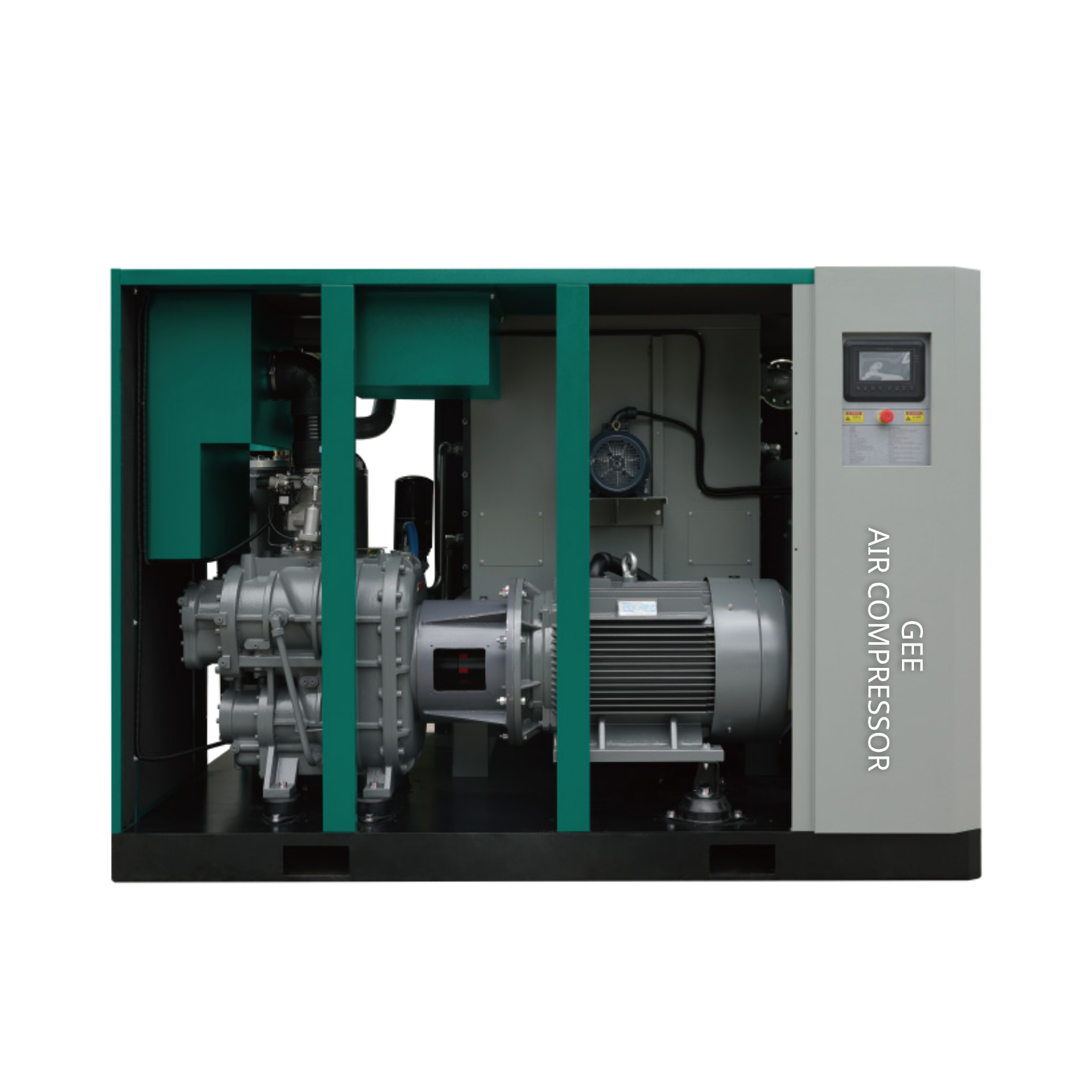

GHV-Z series Permanent magnet double frequency two-stage compression screw air compressor

GHV-Z Series – GEE Air Compressors

High-Efficiency PM Motor Screw Air Compressors
Designed for performance, durability, and energy savings across industrial applications.

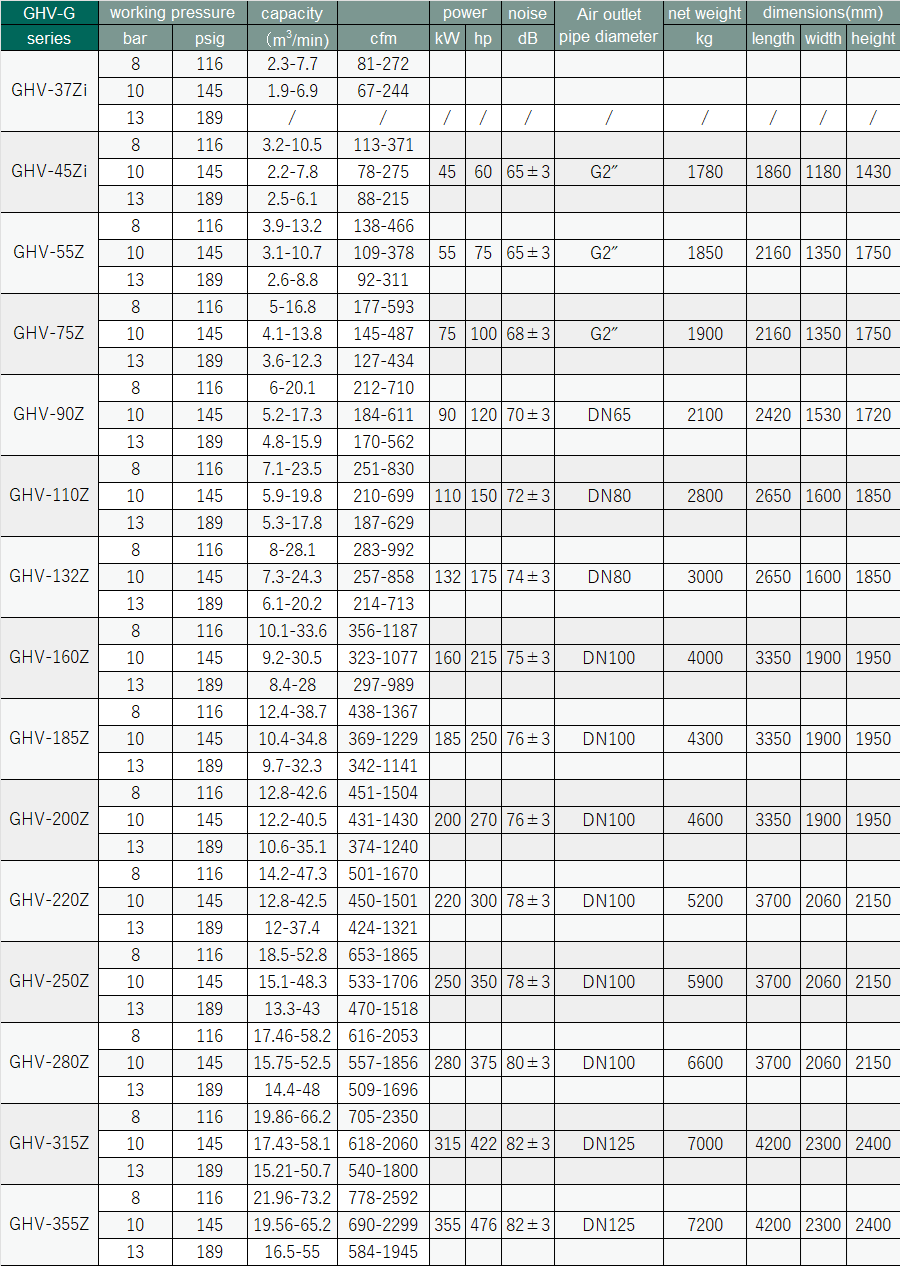

Technical Specifications:

  • Model: GHV-Z Series (Two Stage Compressors)
  • Brand: GEE – Air Compressor
  • Working Pressure: 8 ~ 13 bar
  • Free Air Delivery (FAD): 2.3 ~ 55 m³/min
  • Power Range: 37 ~ 355 kW
  • Motor Type: Permanent Magnet (PM) Motor / Induction Motor
  • Drive Type: Fix Speed / Variable Frequency drive (VFD)
  • Protection Class Options: IP23, IP54, IP55, IP65

Origin & Assembly:

We offer regional flexibility with assembly facilities in China, Europe, and Turkey, ensuring fast delivery and localized technical support.

Customization & Inquiries:

For special configurations, energy audits, or technical support, please contact us directly. Our team will provide a tailored solution for your plant’s needs.

Description

The whole machine has super first-level energy efficiency,second-level compression energy-saving host,permanent magnet synchronous motor efficiency Reach IE5 level、silent centrifugal fan configuration,Dual frequency conversion design of the host fan,enlarged cooler side ceiling row design,hot and cold zone design,human-ma- chine communication interface touch screen microcomputer.The controller monitors the operating status in real time.
