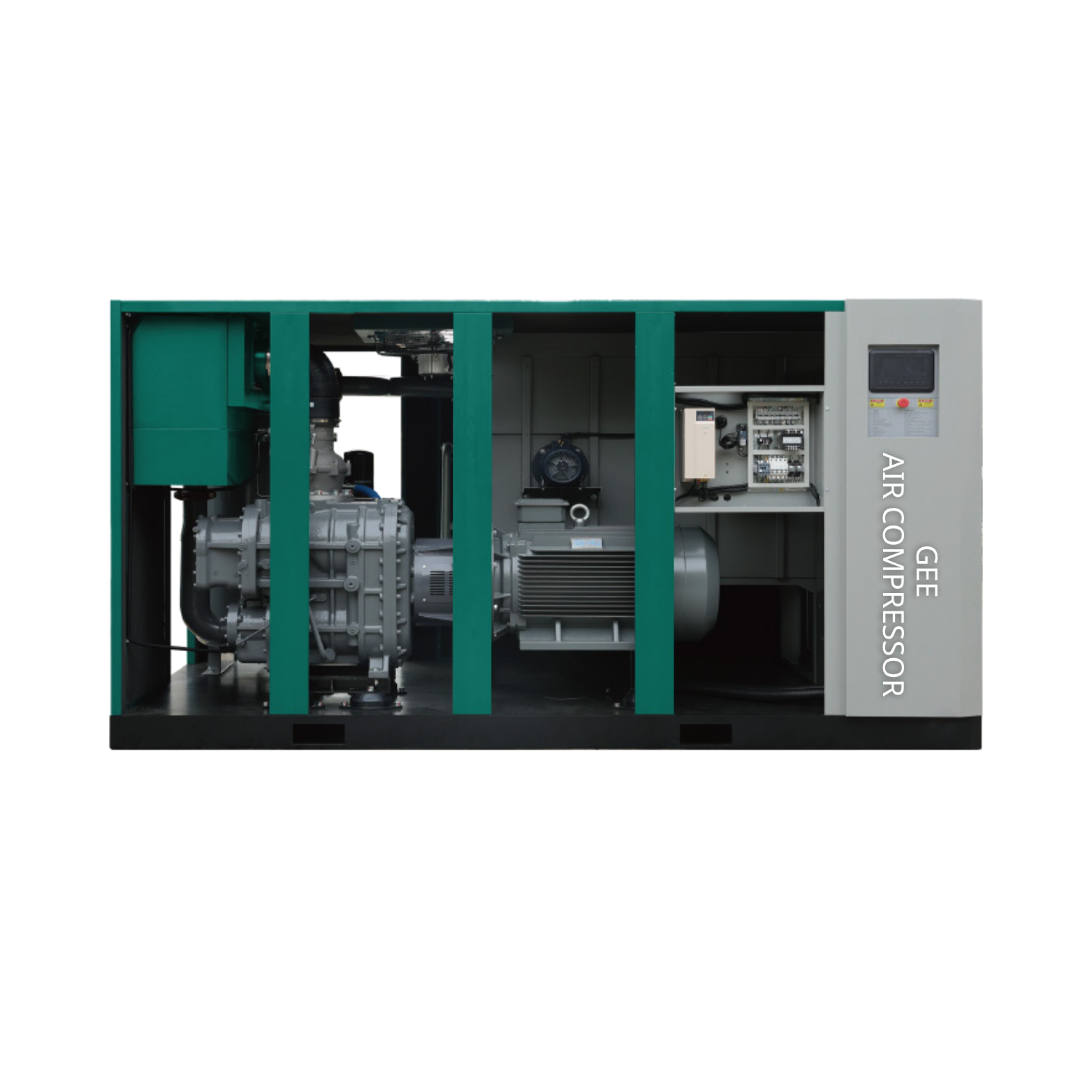

GHLV-Z series Low pressure permanent magnet double frequency two-stage compression screw air compressor

GHLV-Z Series – GEE Air Compressors

High-Efficiency PM Motor Screw Air Compressors
Designed for performance, durability, and energy savings across industrial applications.

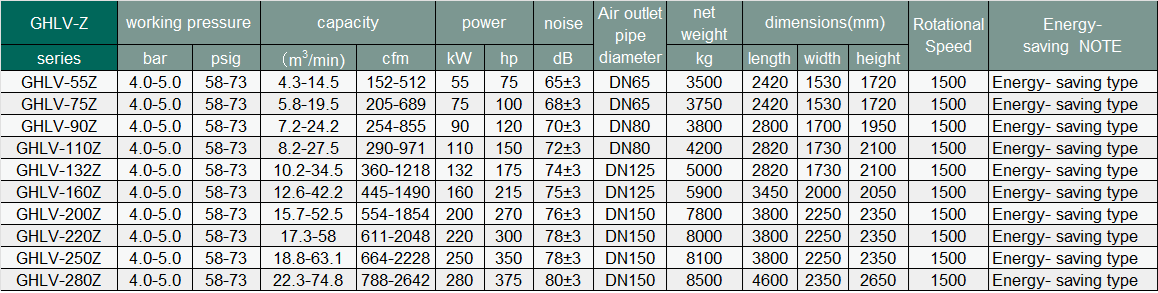

Technical Specifications:

  • Model: GHLV-Z Series (Low pressure Two Stage Compressors For Weaving shed / Air jet Looms)
  • Brand: GEE – Air Compressor
  • Working Pressure: 4 ~ 5 bar
  • Free Air Delivery (FAD): 4.3 ~ 74.8 m³/min
  • Power Range: 55 ~ 280 kW
  • Motor Type: Permanent Magnet (PM) Motor / Induction Motor
  • Drive Type: Fix Speed / Variable Frequency drive (VFD)
  • Protection Class Options: IP23, IP54, IP55, IP65

Origin & Assembly:

We offer regional flexibility with assembly facilities in China, Europe, and Turkey, ensuring fast delivery and localized technical support.

Customization & Inquiries:

For special configurations, energy audits, or technical support, please contact us directly. Our team will provide a tailored solution for your plant’s needs.

Description

Custom-designed secondary compression and low pressure special host, permanent magnet synchronous motor efficiency reached IE5 level, low pressure special oil and gas separation system design, lower oil content, silent centrifugal fan configuration, host fan double fre- quency design, increase the cooler side suction top row design, cold and hot partition design, man-machine AC interface touch screen microcomputer controller real-time moni- toring operation status.
