Description
A piston compressor is a kind of piston reciprocating motion to make gas pressurization and a gas delivery compressor mainly consists of a working chamber, transmission parts, body, and auxiliary parts. The working chamber is directly used to compress the gas, the piston is driven by the piston rod in the cylinder for reciprocating motion, The volume of the working chamber on both sides of the piston changes in turn, and the volume decreases on one side of the gas due to the pressure increase through the valve discharge, the volume increases on one side due to the reduction of air pressure through the valve to absorb the gas.
We have various gas compressors, such as Hydrogen compressors, Nitrogen compressors, Natural gas compressors, Biogas compressors, Ammonia compressors, LPG compressors, CNG compressors, Mix gas compressors, and so on.
Advantages of Gas Compressor:
1. High-quality material, Stable and reliable operation
2. Low Maintenance cost and low noise
3. Easy to install on-site and connect with the user’s pipeline system to operate
4. Alarm automatic shutdown to protect machine function
5. High pressure and flow
Lubrication includes Oil lubrication and oil-free lubrication;
The cooling method includes Water cooling and air cooling.
Installation type includes Stationary, Mobile, and Skid Mounting.
Type includes: V-type, W-type, D-type, Z-type
Product Description

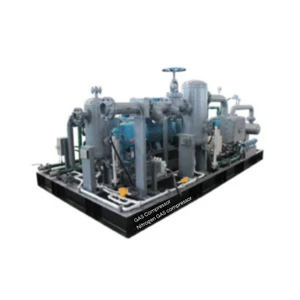

Nitrogen compressor is our main product, mature technology, high stability. It mainly includes large and medium-sized natural gas compressors. The exhaust pressure is from 0.1mpa to 25.0mpa, and the exhaust volume is from 0.05m3/min to 20m3/min. The compressors are available in Z, D, V, W, and other forms, as well as explosion-proof nitrogen compressors for users to choose.
Features and performance: The machine has the characteristics of long service life, sufficient gas, convenient maintenance, and so on.
Application: widely used in nitrogen booster at the back of nitrogen machine, nitrogen replacement in chemical plant and gas unit, as well as nitrogen bottle filling, nitrogen injection well, etc.
Nitrogen Gas compressor product specifications
| Model | Inlet pressure
（MPa） |
Outlet pressure
（MPa） |
Flow（Nm3/h） | Rated speed（Rpm） | Motor power
（Kw） |
| GEE(Z)-0.6/2-25 | 0.2 | 2.5 | 90 | 740 | 30 |
| GEE(Z)-1.5/1-12 | 0.1 | 1.2 | 180 | 730 | 22 |
| GEE(Z)-1.4/2-40 | 0.2 | 4 | 250 | 740 | 37 |
| GEE(Z)-1.3/4-25 | 0.4 | 2.5 | 340 | 980 | 37 |
| GEE(V)-7.2/2.5-6 | 0.25 | 0.6 | 1200 | 980 | 45 |
| GEE(V)-15/0.5-3 | 0.05 | 0.3 | 1200 | 980 | 75 |
| GEE(V)-9.7/1-10 | 0.1 | 1.0 | 1100 | 985 | 110 |
| GEE(V)-7.2/1-22 | 0.1 | 2.2 | 800 | 985 | 132 |
| GEE(D)-1.2/2-150 | 0.2 | 15 | 400 | 740 | 45 |
| GEE(D)-0.5/20-160 | 2.0 | 16 | 600 | 740 | 75 |
| GEE(D)-3.8/10-45 | 1.0 | 4.5 | 2300 | 740 | 185 |
| GEE(D)-11/4-20 | 0.4 | 2.0 | 3000 | 740 | 250 |
| Partial Nitrogen Piston Compressor Product Specifications | ||||||
| Model | Flow-rate
(Nm³/h) |
Intake pressure
(MPa) |
Exhaust pressure
(MPa) |
Rotating speed
(Rpm) |
Motor Power
(Kw) |
|
| 1 | GEE(Z)-0.6/2-25 | 90 | 0.2 | 2.5 | 740 | 30 |
| 2 | GEE(Z)-1.5/1-12 | 180 | 0.1 | 1.2 | 730 | 22 |
| 3 | GEE(Z)-1.4/2-40 | 250 | 0.2 | 4 | 740 | 37 |
| 4 | GEE(Z)-1.3/4-25 | 340 | 0.4 | 2.5 | 980 | 37 |
| 5 | GEE(V)-7.2/2.5-6 | 1200 | 0.25 | 0.6 | 980 | 45 |
| 6 | GEE(V)-15/0.5-3 | 1200 | 0.05 | 0.3 | 980 | 75 |
| 7 | GEE(V)-9.7/1-10 | 1100 | 0.1 | 1.0 | 985 | 110 |
| 8 | GEE(V)-7.2/1-22 | 800 | 0.1 | 2.2 | 985 | 132 |
| 9 | GEE(D)-1.2/2-150 | 400 | 0.2 | 15 | 740 | 45 |
| 10 | GEE(D)-0.5/20-160 | 600 | 2.0 | 16 | 740 | 75 |
| 11 | GEE(D)-3.8/10-45 | 2300 | 1.0 | 4.5 | 740 | 185 |
| 12 | GEE(D)-11/4-20 | 3000 | 0.4 | 2.0 | 740 | 250 |
| No. | Model | Capacity (Nm³/h) | Rated Power (kw) | Inlet Pressure (bar) | Outlet Pressure (bar) |
| 1 | GEE(Z)-0.6/2-25 | 90 | 30 | 2 | 25 |
| 2 | GEE(Z)-1.5/1-12 | 180 | 22 | 1 | 12 |
| 3 | GEE(Z)-1.4/2-40 | 250 | 37 | 2 | 40 |
| 4 | GEE(Z)-1.3/4-25 | 340 | 37 | 4 | 25 |
| 5 | GEE(V)-7.2/2.5-6 | 1200 | 45 | 2.5 | 6 |
| 6 | GEE(V)-15/0.5-3 | 1200 | 75 | 0.5 | 3 |
| 7 | GEE(V)-9.7/1-10 | 1100 | 110 | 1 | 10 |
| 8 | GEE(V)-7.2/1-22 | 800 | 132 | 1 | 22 |
| 9 | GEE(D)-1.2/2-150 | 400 | 45 | 2 | 150 |
| 10 | GEE(D)-0.5/20-160 | 600 | 75 | 20 | 160 |
| 11 | GEE(D)-3.8/10-45 | 2300 | 185 | 10 | 45 |
| 12 | GEE(D)-11/4-20 | 3000 | 250 | 4 | 20 |
